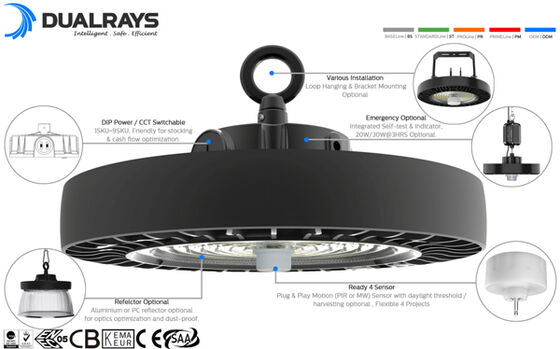

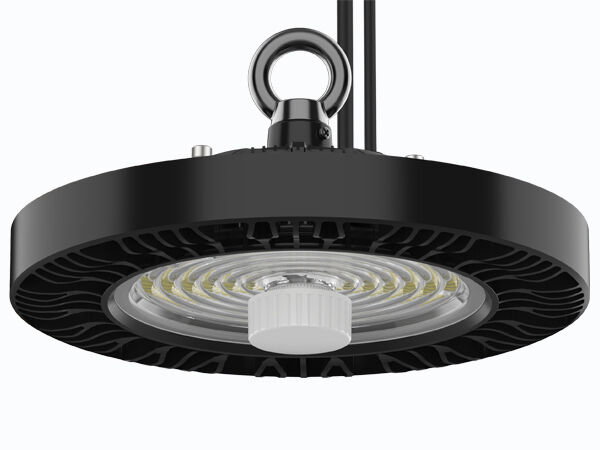

* ADC12 Die-castign Al, Ολοκληρωμένη χύτευση, Εξαιρετική θερμική αγωγιμότητα;
* SAN'AN / LUMILEDS High Brightness SMD2835 LEDs, DUALRAYS Own-developed Driver ή SOSEN / Driver Optional;
* Προστασία IP65 / IK08;
* Γωνία δέσμης 60°/90°/120° προαιρετική;
* Φινίρισμα με επίστρωση πούδρας ανθεκτικό στη διάβρωση;
* Πολλαπλές εγκαταστάσεις: Κρεμαστό βρόχου, Στήριξη οροφής, Στήριξη τοίχου;
* Διάφοροι έξυπνοι έλεγχοι: 1-10V, Αισθητήρας κίνησης, Αισθητήρας φωτός ημέρας, Zigbee και Έκτακτης ανάγκης;
* 3 CCT προαιρετικά (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);
* DIP Switchable Power as Standard(100%-80%-60%);
* Χωρίς UV ή IR και εντελώς χωρίς υδράργυρο;
* L80/B10 @ 61.000h;

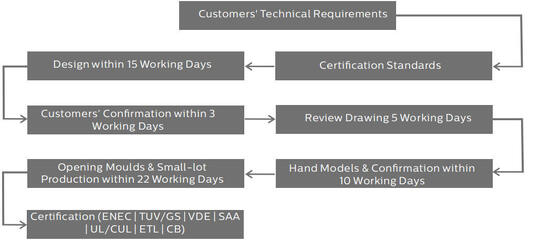

* Προσαρμοσμένο υποστηρίζεται για ειδικά έργα;
Επιλογές:
> Driver: DUALRAYS Own-developed built-in driver, λεπτός σχεδιασμός, ανθεκτικός και συμπαγής.
> 3 CCT προαιρετικά;
> DIP Switchable Power (100%-80%-60%);
> Controls and Dimming: 1-10V, Αισθητήρας κίνησης, Αισθητήρας φωτός ημέρας, Zigbee και Έκτακτης ανάγκης;

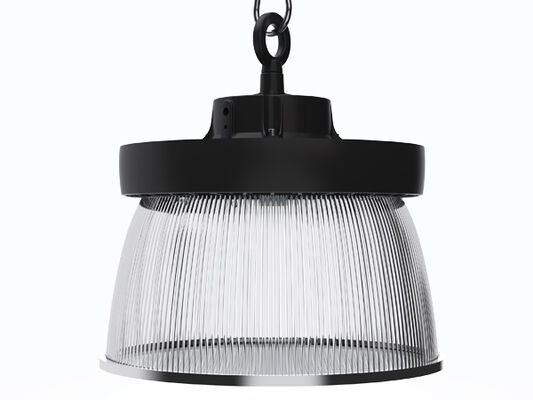

> Reflector : Ανακλαστήρας PC με / χωρίς κάλυμμα. στήριξη σωλήνα.
> Installation: Κρεμαστό βρόχου, Στήριξη οροφής, Στήριξη τοίχου;
> Replacement for traditional HID or MH light source;
> Factory halls and production areas;
> Warehouses and logistics halls;
> Hardware stores and megastores;
> Stadiums and other sports facilities;
> Traditional lamp replacement;
| Power/W Size A / mm Size B / mm Size C / mm Size D / mm Size E / mm |
| 100 φ280 φ178 88 139 203 |
| 150 φ280 φ178 88 139 203 |
| 200 φ280 φ178 88 139 203 |
| Γενικό σύστημα |
Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN
AC-44100,EN AC-47100 according to the UNE EN 1706 standard powder coated |
| Diffuser Material: Injected PC according to the UNE-EN ISO 294-2:2019 standard, UV filter conditional(IK08) |
| Housing Color: Metallic Black (RAL9017), Other colors optional |
| Sealing Gaskets: Silicone foam |
LEDs Thermal Dissipation: Through finless ADC12 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Optical system: Lens optic, PC/alu-reflector optional |
Finish: Polyester powder paint coating, electrostatically sprayed and sublimated in the oven, Resistant to
corrosion |
| Recommended Mounted Height: 5 - 15 meters |
| Maintenance: LED not exchangeable, driver exchangeable |
| Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Zigbee |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK08 |
| Protective Class: Class Ⅰ |
| Glow Wire: 750°C (Under 30s) |
| Cable Gland: Plastic M20x1.5 – IP68 | Plastic M25x1.5 – IP68 (optional) |

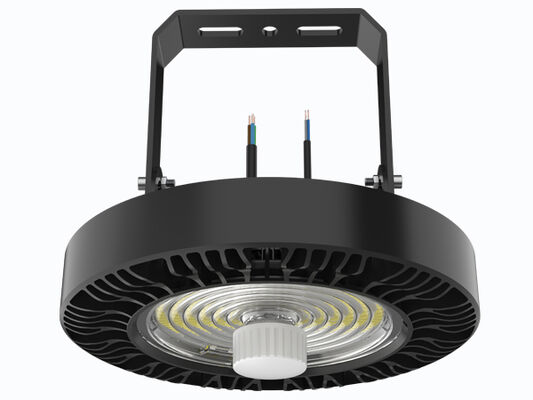

| Installation: Loop Hanging | Bracket Mounting |
Smart Function: PIR Sensor with daylight threshold| Microwave Sensor with daylight threshold or daylight
harvesting| Emergency |
| Upward light output ratio: ULOR 0 |
| Downward light output ratio: DLOR 100% |
| Ηλεκτρικό σύστημα |
| Electrical connection: 0.3m 3*1.0mm2 as stand, max 3x2.5mm2 + 2x1.5 mm2 dimming wire, free wire ends, tailored length wire with EU/AU/US plug for option |
| Main Voltage: 100~277VAC/ 50/60Hz, 140-280VDC |
| Power Factor (PF): ≥0.97 |
| Total Harmonic Distortion (THD): ＜20% |
| Surge Protection: DM: 6kV,CM: 6kV,Criterion B |
SPD (Optional): Type 2, 10kV and 20kA transient surge protector. Series connection with thermofuse
disconnector for a more effective protection at the end of its service life |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1%Perceptibility of Stroboscopic Effects (Pst) ＜1 |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |
| Luminaires Power B10A B16A C10A C16A |
| 100W 6 10 11 17 |
| Module via LSS Circuit Breakers 150W 4 6 6 10 |
| 200W 3 5 6 8 |
| Σύστημα φωτομετρίας |
| LEDs: SMD2835 (1W) |
|
CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K)
Tri-color optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice)
|
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 33.9 (Cross)
33.9 (Longitudinal)
|
| Beam Angle: 60° | 90° | 120° Optional |
| Average Luminaire Useful Lifetime: 61.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 150LPW (PROLine) | 170LPW (PRIMELine) | 190LPW (ULTRALine) Optional |
| Rated Power: 100W DIP(60/80W/100W) 150W DIP(100W/120W/150W) 200W DIP(120W/150W/200W) |
| (PRO) Max. 15.000lm Max. 22.500lm Max. 30.000lm |
|
Lumens Delivered
@ 5000K, CRl>80 (PRIME) Max. 17.000lm Max. 25.500lm Max. 34.000lm
|
| (ULTRA) Max. 19.000lm Max. 28.500lm Max. 38.000lm |
| Operation Condition |
| Operation Temperature / Humidity: -30~ +60℃ (-22°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -30~ +80℃ (-22°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L80B10: ≥100.000H |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 198.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Πιστοποιήσεις |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra
1. Power OFF the luminaire first.
2. Carefully remove the IP65 cover by hand.
3. Adjust the slide-switch by hand to the desired setting - Do NOT use any metal tool.
4. Put the IP65-cover back in place.
5. Power ON the luminaire.
Turn off the power, connect AC wire.
Dimming connection ( With dimmable driver)
1.Compatible with 0-10V dimming.
2.Connect wires as above diagram.
| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 100 295x115x298mm 615x308x320mm 5PCS 2.2Kg 13.9Kg |
| 150 295x115x298mm 615x308x320mm 5PCS 2.4Kg 14.2Kg |
| 150 295x115x298mm 615x308x320mm 5PCS 2.6Kg 14.6Kg |
Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
Δήλωση:
Σύμφωνα με το Διεθνές Πρότυπο του φωτιστικού LED, εδώ η DUALRAYS ισχυρίζεται επίσημα ότι τα προϊόντα της σειράς DUALRAYS LED Highbay Light (UFO Highbay) επιτρέπεται να εφαρμόζονται μόνο σε εσωτερικό ή ημι-εξωτερικό ουδέτερο περιβάλλον. Εν τω μεταξύ, η DUALRAYS υπόσχεται πλήρη εγγύηση για τα προϊόντα.
Οποιαδήποτε εφαρμογή σε σοβαρό περιβάλλον, συμπεριλαμβανομένης της υψηλής/χαμηλής θερμοκρασίας, της υψηλής υγρασίας, της υψηλής αλατότητας, της υψηλής αμμωνίας κ.λπ. δεν επιτρέπεται χωρίς την επίσημη επιβεβαίωση από τον κατασκευαστή. Εάν συμβεί οποιαδήποτε εσφαλμένη εφαρμογή, η πολιτική εγγύησης δεν είναι πλέον εγγυημένη.
