* Υψηλής φωτεινότητας SAN'AN SMD2835 LEDs, TRIDONIC/ μη-SELV High PF Flicker-free Driver DIP Switch Power Adjustment Optional;;
* Έτοιμο για αισθητήρα κίνησης & έκτακτης ανάγκης, Plug & Play Sensor & Emergency;

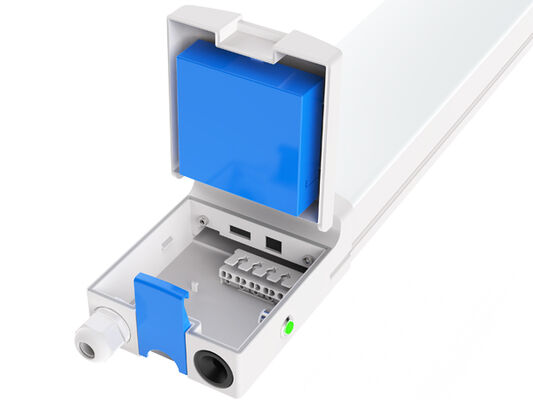

* Σχεδιασμός πόρπης End-cap, γρήγορο & βολικό άνοιγμα και επανακλείδωμα για καλωδίωση, βελτιώνει σημαντικά την απόδοση και εξοικονομεί κόστος εργασίας;;
* Προστασία IP65 / IK10;
* Γωνία δέσμης 120°;
* Επιλογή μονής ή διπλής καλωδίωσης;
* Πολλαπλές εγκαταστάσεις: Ανάρτηση, επιτοίχια τοποθέτηση;
* Διάφοροι έξυπνοι έλεγχοι: 1-10V, DALI, αισθητήρας κίνησης, αισθητήρας φωτός ημέρας, Zigbee και Έκτακτης ανάγκης;
* 3 CCT προαιρετικά (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);
* Μονόφασο (L/N/E) ή Τριφασικό (L1/L2/L3/N/FG) Προαιρετικό;
* Χωρίς UV ή IR και εντελώς χωρίς υδράργυρο;
* L80/B10 @ 61.000h;
* Προσαρμοσμένο υποστηρίζεται για ειδικά έργα;
Επιλογές:
> Driver: / TRIDONIC /BOKE Μη-SELV driver με DIP τεχνολογία προαιρετική.
> 3 CCT προαιρετικά (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K);

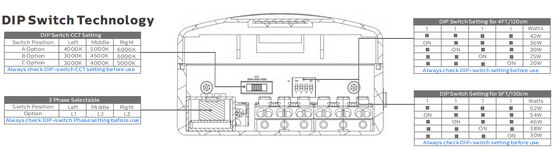

> DIP Switchable Power;
> Controls and Dimming: 1-10V, DALI, αισθητήρας κίνησης, αισθητήρας φωτός ημέρας, Zigbee και Έκτακτης ανάγκης;
> Installation: Ceiling mounted | Suspension | Rotatable Wall Mounted;
> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;
| Length/mm Size A / mm Size B / mm Size C / mmSize C / mm |
| 600 2ft/605 620 102 54 |
| 1200 4ft/1205 1220 102 54 |
| 1500 5ft/1505 1520 102 54 |
| General System |
| Housing Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Diffuser Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Housing Color: White (RAL9016), Other colors optional |
| Sealing Gaskets: Silicone foam |
LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Anti-condensation: Pressure-balancing valve to ensure moisture release, avoid condensation and maintain the luminaire IP tightness |
| Finish: Electrostatically sprayed and sublimated in the oven. Resistant to corrosion |
| Recommended Mounted Height: 2 - 8 meters |
| Maintenance: Quick snap end-cap for easy installation |
| Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Mesh | Zigbee | Casambi |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK10 |
| Protective Class: Class Ⅰ |
| Glow Wire: 850°C (Under 30s) |
| Cable Gland: M20 cable gland (Nylon) |
| Installation: Ceiling mounted | Suspension | Rotatable Wall Mounted |

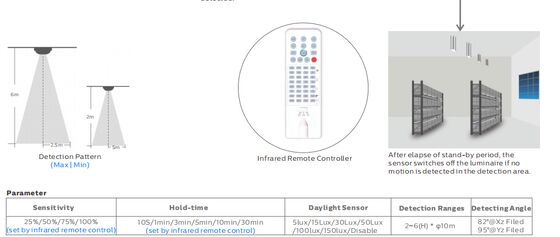

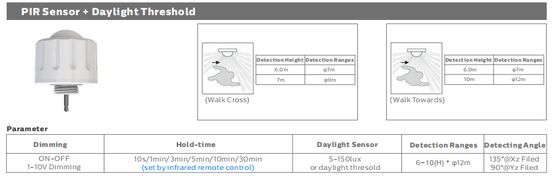

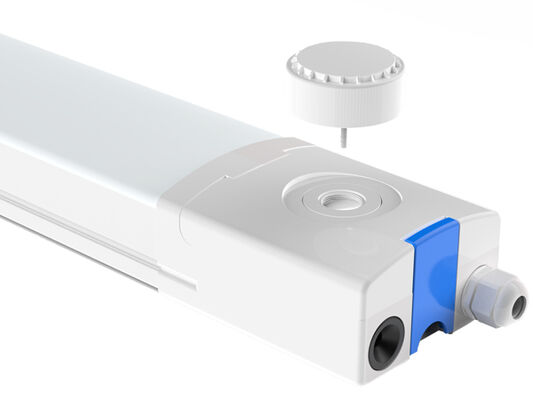

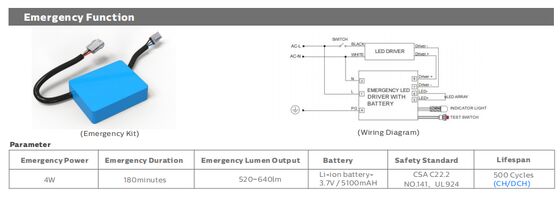

| Smart Function: PIR Sensor | Microwave Sensor | Emergency |
| Electrical System |
| Through-wiring: 3*1.5mm2 | 5*1.5mm2 | 3*2.5mm2 | 5*2.5mm2 wires through for option |
| Main Voltage: 220~240VAC/ 50/60Hz, 180-264VDC |
| Power Factor (PF): ≥0.96 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1% |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |

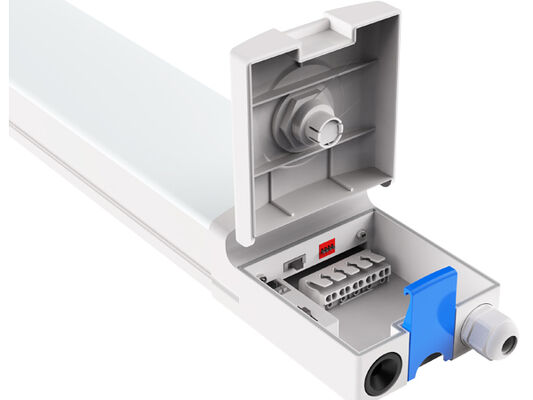

| Terminal Connection: Quick snap end-cap for easy installation, sliding gear tray for easy replacement and maintenance optional |
| Luminaires Power B10A B16A C10A C16A |
| 20W 70 110 98 158 |
| 30W 46 74 66 104 |
| Module via LSS Circuit Breakers 40W 35 55 49 78 |
| 50W 28 44 39 62 |
| 60W 23 37 34 52 |
| Photometry System |
| LEDs: SMD2835 (1W) |
|
CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K)
3 CCT optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice)
|
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 24.9 (Cross)
23.4 (Longitudinal)
|
| Beam Angle: 120° |
| Average Luminaire Useful Lifetime: 61.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional |
| Length 2FT/600mm 4FT/1200mm 5FT/1500mm |
| Rated Power: 20W 30W 30W 40W 42W DIP(20~42W) 40W 60W 62W DIP(30~62W) |
| (PRO) 2.600lm 3.900lm 3.900lm 5.200lm Max. 5.460lm 5.200lm 7.800lm Max. 8.060lm |
Lumens Delivered
@ 5000K, CRl>80 (PRIME) 3.200lm 4.800lm 4.800lm 6.400lm Max. 6.720lm 6.400lm 9.600lm Max. 9.920lm |
| Operation Condition |
| Operation Temperature / Humidity: -20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10: ≥0.96 |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

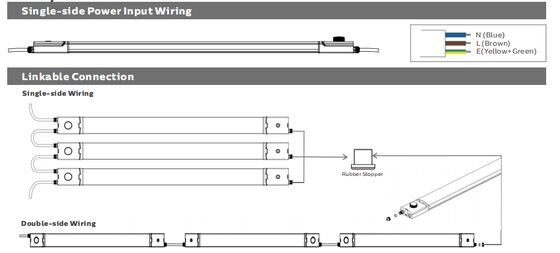

Linkable Connection:
| Length/mm Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 600 670x106x65mm 685x333x220mm 9PCS 1.6Kg 16.9Kg |
| 1200 1270x106x65mm 1385x333x220mm 9PCS 2.4Kg 23.9Kg |
| 1500 1570x106x65mm 1685x333x220mm 9PCS 3.4Kg 33.6Kg |
Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.
Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.
